9200 Series

DKS 9200 Series Operators are designed for maximum security applications only – such as industrial locations, loading docks, factories, airport security areas, sea ports, etc. Because of the need to prioritize security in these applications, these operators are designed for fail-secure operation and require manual operation to open the gate in the event of a power outage. To enhance security, these operators feature an anti-tailgating circuit and an adjustable partial open feature to help prevent unauthorized vehicle access. In addition, speed controller options allow the user to adjust the gate speed from 1/2 ft/sec up to 4 ft/sec. An Emergency Close feature is available on some models which will close the gate at 4 ft/sec. This assures your security gate is open the absolute minimum amount of time necessary.

Overview
Features
Tech Specs
Resources
Accessories
  • DKS 9200 Gate Operators

9200 Series

More Applications – Maximum Security – Maximum Choices with Speed Controls

DoorKing’s Maximum Security operators are designed to operate vehicular slide gates in limited (Class III) and restricted (Class IV) applications only.   These operators must never be used in applications serving the general public.  The speed control on these operators (except 9210) allows the user to set the speed of the gate from 1/2 to 2 feet/sec., and provides slow-start and slow-stop functions as well.



Compatible with
Slide Gates
Mount on Concrete
Pad or Steel Pedestal
Emergency Close
Option Available



Find A Dealer

Applications

Commercial & Industrial
Maximum Security

Product Features



Adjustable Partial Open feature - DKS Gate Operator





Adjustable Partial Open

Allows long gates to open 14 ft (4.2 m) for automobile traffic, or opens gate fully for large trucks or oversized vans.

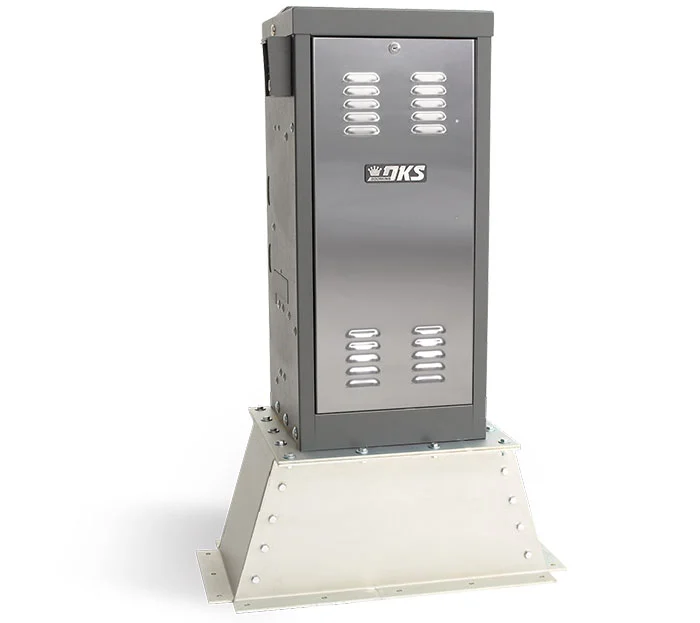

DKS - 9200 models include a heavy-duty pedestal





Optional Pedestal Mount

Heavy-duty pedestal mounting stand, 9210, 9220. (Recommended for gates over 30-feet to allow use of a chain support rail).



    Adjustable Speed Motor Drive

    Developed for precise control.

    Solid State Motor Control

    Designed without relay contacts to wear out or burn.

    Limit Switches

    Direct driven and easily adjustable.

    Gate Tracker™

    Provides Operator data to companion DKS Access Controller.



    Technical Specifications

    75′ / 100′ Maximum Gate Lengths

    8,000 lb. / 5,000 lb. / 2,000 lb. / 3,000 lb. / 2,000 lb. Maximum Gate Weights

    Adjustable Speed Control from 1/2′ – 6′ per Second

    Fail-secure Operation

    1, 2 & 3 HP Continuous Duty Motors

    Specifications – 9210 – 9220 – 9230

    9210

    • Maximum gate length 100-feet.
    • Maximum gate weight 2000 Lb. (#50 chain) / 3000 Lb. (#60 chain). Assumes gate is on level ground, in good condition with properly adjusted hardware.  Other external factors may affect the performance of the gate operator.
    • Set speed 1 Ft./sec.
    • 40:1 gear reduction running in a continuous oil bath.
    • 1 HP continuous-duty motor.
    • 115, 208, 230 VAC single-phase, 208, 230, 460 VAC three-phase.
    • Operator is shipped with chain brackets and 20-feet of #60 chain.
    • Class III and IV applications only.
    • ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator.   Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)



    9220
    • Maximum gate length 75-feet.
    • Maximum gate weight 2000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
    • Adjustable solid state speed control, 1/2 to 2 Ft./sec.
    • Slow start / slow stop function.
    • 30:1 gear reduction running in a continuous oil bath.
    • 2 HP continuous-duty motor.
    • 208, 230 VAC single-phase; 208, 230, 460 VAC three-phase.
    • Operator is shipped with chain brackets and 20-feet of #60 chain.
    • Class III and IV applications only.
    • ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    9230
    • Maximum gate length 75-feet.
    • Maximum gate weight 5000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware.  Other external factors may affect the performance of the gate operator.)
    • Adjustable solid state speed control, 1/2 to 2 Ft./sec.
    • Slow start / slow stop function.
    • 30:1 gear reduction running in a continuous oil bath.
    • 3 HP continuous-duty motor.
    • 208, 230, 460 VAC three-phase.
    • Operator is shipped with chain brackets and 20-feet of #60 chain.
    • Class III and IV applications only.
    • ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    Gate TrackerTM

    Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control system (requires 2358 expansion board)

    Options
    • Heavy-Duty Mounting Pedestal is recommended for gates weighing over 1500 lb and is required if Chain Tray is used (models: 9210, 9220)
    • Chain Tray Kit (p/n 2601-270) is available in 10 ft lengths and is recommended on gates exceeding 20 ft in length
    • Red / Green Traffic Signal provides a visual indication when it is OK for traffic to proceed





    Specifications – 9235 – 9240
    9235
    • Maximum gate length 100-feet.
    • Maximum gate weight 3000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware.  Other external factors may affect the performance of the gate operator.)
    • Adjustable solid state speed control, 1/2 to 4 Ft./sec.
    • Emergency Close 6 Ft./sec.
    • Slow start / slow stop function.
    • 10:1 gear reduction running in a continuous oil bath.
    • Disc brake.
    • 3 HP continuous-duty motor.
    • 208, 230, 460 VAC three-phase.
    • Operator is shipped with chain brackets and 20-feet of #60 chain.
    • Class III and IV applications only.
    • ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
    9240
    • Maximum gate length 75-feet.
    • Maximum gate weight 8000 Lb., #80 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware.  Other external factors may affect the performance of the gate operator.)
    • Adjustable solid state speed control, 1/2 to 2 Ft./sec.
    • Slow start / slow stop function.
    • 30:1 gear reduction running in a continuous oil bath.
    • 3 HP continuous-duty motor.
    • 208, 230, 460 VAC three-phase.
    • Operator is shipped with chain brackets and 20-feet of #80 chain.
    • Class III and IV applications only.
    • ETL Listed.  (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or B2 entrapment protection devices are required to be installed with this gate operator.  Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)



    Mechanical
    • Direct driven limit nuts.
    • Anti-tailgating feature.
    • Adjustable mid-stop.
    • Gate tracker reporting output.
    • Ports for plug-in loop detectors.
    • Two convenience outlets.
    • Fail-secure operation includes crank for manual operation.
    • Programming switches.
    • Built-in reset switch.
    • Built-in power On/Off switch.
    Miscellaneous
    • Environmental: 10°F to 140°F (-12°C to 62°C)
    • Thermostatically Controlled Heater Kit recommended for colder environments
    Safety
    • This Vehicular Slide Gate Operator is designed for Class III and IV applications only and should never be used in applications serving the general public such as apartment complexes, gated communities, residential applications, parking garages, etc.
    • Operator requires Type B1 and/or Type B2 entrapment protection in each direction of travel, otherwise the operator will not run.





    Dimensions and Weight

    Dimensions: 20 “W x 35.5″H x 18″D

    Shipping weight approximately: 225 lb (102 kg) Depending on model and options selected





    Dimensions and Weight Optional Heavy Duty Pedestal

    Dimensions w/pedestal: 31.5 “W x 47″H x 16.5″D
