1835 – 90 Series Entry System
The 1835-90 Series stores up to 3,000 phone numbers and 8,000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion Boards (up to 24 wirelessly). The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing, and provides easy internal installation of optional components such as a Card Reader, LCD Heater, and TCP/IP adapter for a direct internet connection.
Telephone Entry & Access Control
The Model 1835 is an ideal telephone entry system suited for apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows Voice and Data connection over Cellular, Internet, or a POTS (Plain Old Telephone Service) connection. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy-to-use Remote Account Manager programming software, card reader interface, and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. With Tracker Expansion Boards, up to 48 wired card readers (or 24 wirelessly) can be interfaced with the 1835 to provide access control. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high-rise buildings. For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display, and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active, and trap.
Communicate with
Guests via Phone
Entry System Programming via
Cloud or Windows Account Manager
One Box Style Fits
Internal Accessories
Applications
DKS Easy Connect Options
Power
AC and DC Power
DC Power Inverter & Backup Battery
Connection
Cellular Wireless
VoIP/Ethernet
POTS Telephone Line
Programming
Cloud Account Manager
Desktop Account Manager
Product Features
Cloud Account Manager
Log in to the DKS Access System from any device with internet access through your preferred browser. The Cloud Account Manager enables programming and management of Entry Systems from anywhere, you’ll never have to download and upload the database, or inadvertently overwrite another administrator’s changes. It’s designed for administrators and staff of multi-unit and multi-use buildings and is compatible with DKS models 1833, 1834, 1835, 1837 Telephone Entry and Access Control Systems, and model 1838 Multi Door Card Access System.
Accessible from any browser on any internet-connected device.
MOUNTING KITS — 90 SERIES

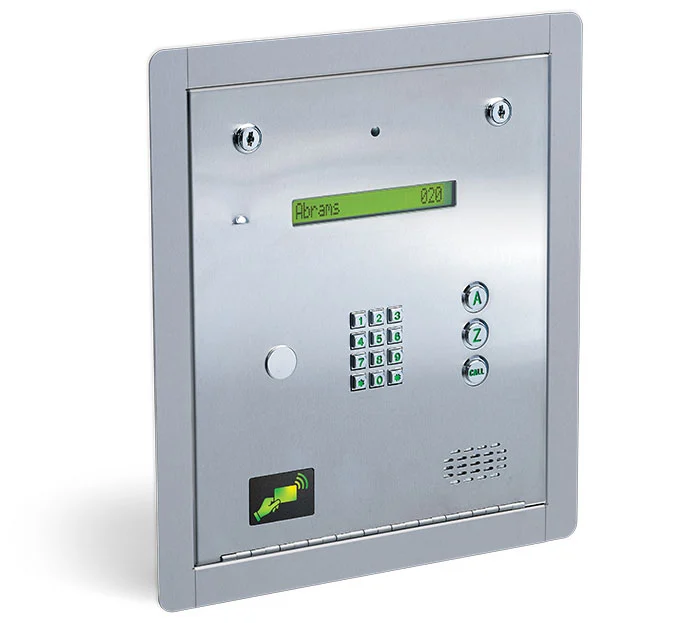

Flush Mount Kit — Stainless Steel 1814-20
- Use when Flush Mounting a 90 Series System.
- Use with 1834, 1835 and 1837 90 Series Telephone Entry Systems only.

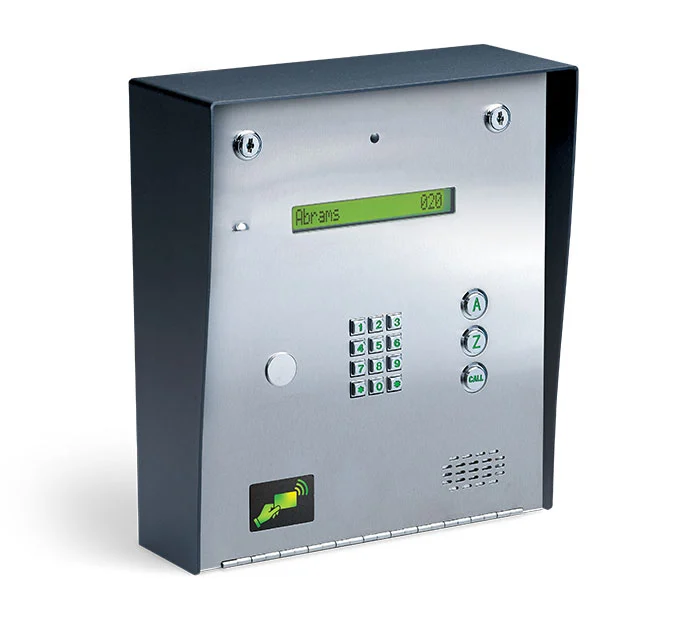

10 Gauge Hood — Black 1814-185
- Provides additional vandalism protection.
- Use with 1834, 1835 and 1837 90 Series Telephone Entry Systems only.

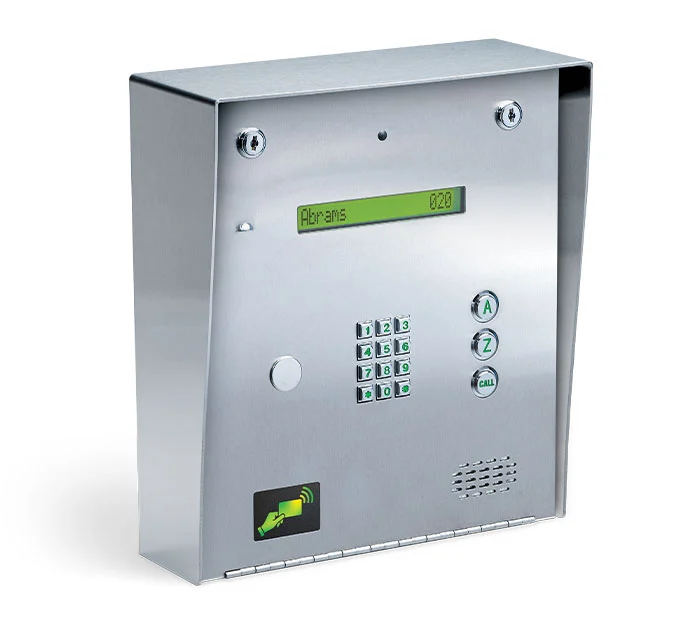

10 Gauge Hood — Stainless Steel 1814-180
- Provides additional vandalism protection.
- Use with 1834, 1835 and 1837 90 Series Telephone Entry Systems only.
Technical Specifications
Control up to 48 Access Points
Store Up to 3,000 Phone Numbers
Use Up to 3,000 Entry Codes
Use Up to 8,000 Device Codes
26-bit Wiegand & RS45* Compatible
Specifications
- True Full Duplex Communication.
- Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
- Stores up to 255 area codes.
- Transaction buffer stores last 8000 events.
- Stores up to 8000 device (card) codes.
- 31 security (permission) levels, 29 programmable with 4 time zones each.
- 8 hold open time zones.
- Three anti-pass back configurations: passive, active and trap.
- Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
- Expandable (note 2) to control up to 48 wired entry points (or 24 wirelessly).
- 4-digit entry codes, one for each telephone number.
- 3 form “C” dry contact relays.
- Single-line directory display uses super-twist LCD with 1/2-inch characters.
- EEPROM memory chip.
- Two 16 VAC, 20 VA power transformers supplied.
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4528 A
- Compliant with UL 294. ETL listed.
Note 1: Requires Elevator Control Board(s).
Note 2: Requires Tracker Expansion Board(s).
Connection Options
- Cellular 4G-LTE service (note 1)
- VoIP (note 2)
- POTS – Plain Old Telephone Service (note 3)
Mechanical
- Large easy to use A and Z scroll buttons.
- One Touch “CALL” button.
- Built-in single-line LCD directory display.
- Programmable directory codes (1-4 digits).
- 10 and 11-digit dialing capability.
- Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (or 24 wirelessly).
- Live Streaming.
- Live transactions.
- Anti-pass back.
- 8000 event transaction buffer.
- 31 Security (permission) Levels – 29 Programmable (2 fixed levels).
- Database import/export capability.
- LED Lighting illuminates keypad.
- Built-in clock/calendar.
- Holiday schedule.
- Hold open time zones.
- Entry code time zones.
- Built-in postal lock provision.
Miscellaneous
- Environmental: 10° F to 145° F (-12° C to 62° C)
- Heater Kit (P/N 2600-584) Recommended when temperatures routinely fall below 35° F (1.6° C)
- Optional high-resolution camera kits additional CCV equipment and cabling required
Dimensions and Weight
Dimensions 90 Series
- 14.75″ (375 mm) H x 12.75″ (324 mm) W x 3.75″ (95 mm) D.
Shipping weight approximately
- 20-25 lb (9-11 kg)
Optional Mounting Accessories
- 814-185 Black/1814-180 Stainless Steel Hood Dimensions prox. 13.08 x 14.88 x 5.61 in. 323 x 378 x 142.5 mm
- 814-200 Stainless Steel Flush Mount Kit Dimensions prox. 15.34 x 17.27 x 3.76 in. 389.63 x 377.95 x 95.5 mm
