1835 – 80 Series Entry System

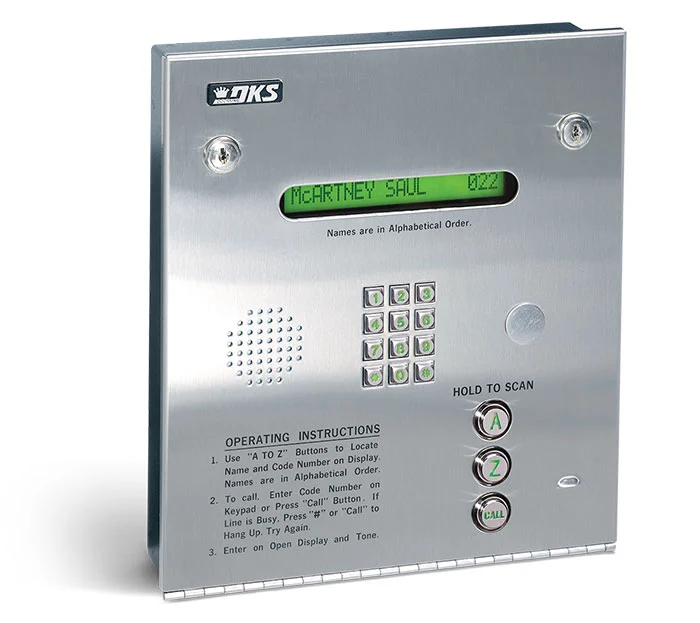

The 1835 – 80 Series stores up to 3,000 phone numbers and 8,000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion Boards (up to 24 wirelessly). The 80 Series is available in Surface or Flush mount styles.
Telephone Entry & Access Control
The Model 1835 is an ideal Telephone Entry System suited for apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows for a Voice and Data connection over Cellular, Internet, or POTS (Plain Old Telephone Service) connections. The single-line LCD display features big 1/2-inch characters for easy viewing and your personalized message scrolls across the screen from right to left when the system is not in use. Our unique “One Touch” CALL button makes this system one of the easiest to use on the market today! The built-in electronic directory, easy-to-use Remote Account Manager programming software, card reader interface, and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. The 1835 can be expanded with wired Tracker expansion boards to control up to 48 access points (or 24 with a wireless connection). Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high-rise buildings. Â For additional security, the 1835 allows you to monitor activity AS IT HAPPENS on your computer display, and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active, and trap.
Communicate with
Guests via Phone
Entry System Programming via
Cloud or Windows Account Manager
1 Line, 20 Character
LED Directory Screen
Applications
DKS Easy Connect Options
Power
AC and DC Power
DC Power Inverter & Backup Battery
Connection
Cellular Wireless
VoIP/Ethernet
POTS Telephone Line
Programming
Cloud Account Manager
Desktop Account Manager
Product Features
Cloud Account Manager
Log in to the DKS Access System from any device with internet access through your preferred browser. The Cloud Account Manager enables programming and management of Entry Systems from anywhere, you’ll never have to download and upload the database, or inadvertently overwrite another administrator’s changes. It’s designed for administrators and staff of multi-unit and multi-use buildings and is compatible with DKS models 1833, 1834, 1835, 1837 Telephone Entry and Access Control Systems, and model 1838 Multi Door Card Access System.
Accessible from any browser on any internet-connected device.
Plug & Play Connection Services
Cellular and VoIP for Voice and Data (remote programming). Connection and setup is a snap with DKS connection services. Start programming immediately from the DKS Cloud with your laptop or tablet or from your dedicated PC using the Windows Account Manager software.
Technical Specifications
Control up to 48 Access Points
Store Up to 3,000 Phone Numbers
Use Up to 3,000 Entry Codes
Use Up to 8,000 Device Codes
26-bit Wiegand & RS45* Compatible
Specifications
- True Full Duplex Communication.
- Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
- Stores up to 255 area codes.
- Transaction buffer stores last 8000 events.
- Stores up to 8000 access card codes – dependent on system memory.
- 31 security (permission) levels, 29 programmable with 4 time zones each.
- 8 hold open time zones.
- Three anti-pass back configurations: passive, active and trap.
- Elevator control (note 1) for up to 8 elevators, each serving 64 floors.
- Expandable (note 2) to control up to 48 wired entry points (or 24 wirelessly).
- 4-digit entry codes, one for each telephone number.
- 3 form “C” dry contact relays.
- Single-line directory display uses super-twist LCD with 1/2-inch characters.
- EEPROM memory chip.
- Requires touch-tone, loop-start central office phone line.
- Two 16 VAC, 20 VA power transformers supplied.
- FCC (US): DUF6VT-12874-OT-T
- DOC (CAN): 1736 4528 A
- Compliant with UL 294. Â ETL listed.
Note 1: Requires Elevator Control Board(s).
Note 2: Requires Tracker Expansion Board(s).
Connection Options
The 1835 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:
- Cellular 4G-LTE service (note 1)
- VoIP (note 2)
- POTS – Plain Old Telephone Service (note 3)
Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.
Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection – using the IM Server Modem (subscription required).
Go to Connection Options for further details.
Mechanical
- Large easy to use A and Z scroll buttons.
- One Touch “CALL” button.
- Built-in single-line LCD directory display.
- Programmable directory codes (1-4 digits).
- 10 and 11-digit dialing capability.
- Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (or 24 with a wireless connection).
- Live Streaming.
- Live transactions.
- Anti-pass back.
- 8000 event transaction buffer.
- 31 Security (permission levels)- 29 Programmable (2 fixed levels).
- Database import/export capability.
- LED Lighting illuminates keypad.
- Built-in clock/calendar.
- Holiday schedule.
- Hold open time zones.
- Entry code time zones.
- Built-in postal lock provision.
Miscellaneous
- Environmental: 10°F to 145°F (-12°C to 62°C)
- Heater Kit (P/N 2600-584) recommended when temperatures routinely fall below 10°F (-12°C)
- ADA Compliant Handset Kit (P/N 1807-012)
- Camera Ready: Optional B&W or Color CCTV Camera* *may require additional CCTV equipment

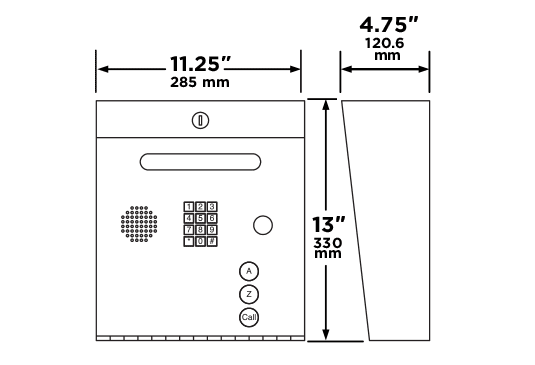

Dimensions and Weight – Surface Mount
Shipping weight approximately 20-25 lb (9-11 kg)
Dimensions Surface Mount: 13″H x 11.25″W x 4.75″D.
Dimensions and Weight – Flush Mount
Shipping weight approximately 20-25 lb (9-11 kg)
Dimensions Flush Mount: 13.25″H x 12″W x 3.25″D.
