1819 Information Phone

The DKS 1819 is an Information Telephone that is suited for applications that require only a single phone number to be called. Visitors simply press the single CALL button to establish communication and are easily identified by voice communication. Access can be granted or denied directly from a touch-tone telephone.

Overview
Features
Tech Specs
Resources
Accessories
  • 1819 Telephone Entry System - DKS Doorking

1819 Information Phone

One Button Voice Communication

The model 1819 is an information telephone that is suited for applications that require only a single phone number to be called. Visitors needing assistance simply press the CALL button to establish communication with the management office, security office or to any phone number (including long distance numbers) of your choice. If the 1819 is installed at a controlled entry point, once communication is established and the visitor is identified, access can be granted by simply pressing the number 9 on the phone that the 1819 is in communication with.



Communicate with
Guests via Phone
Entry System
Programming via System
or Telephone Keypad
Call Button Connects
Directly to Main Office



Find A Dealer

Applications

Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security





Product Features



DKS Doorking - 1812 Guest Telephone Entry System



Voice Communication

The model 1819 is an information telephone that is suited for applications that require only a single phone number to be called. Visitors simply press the single CALL button to establish communication and are easily identified by voice communication.





    Easy Access Control

    Grant access with a simple push of a button on a touch-tone telephone.

    Full Duplex

    High quality communication — the same standard that the phone company uses.

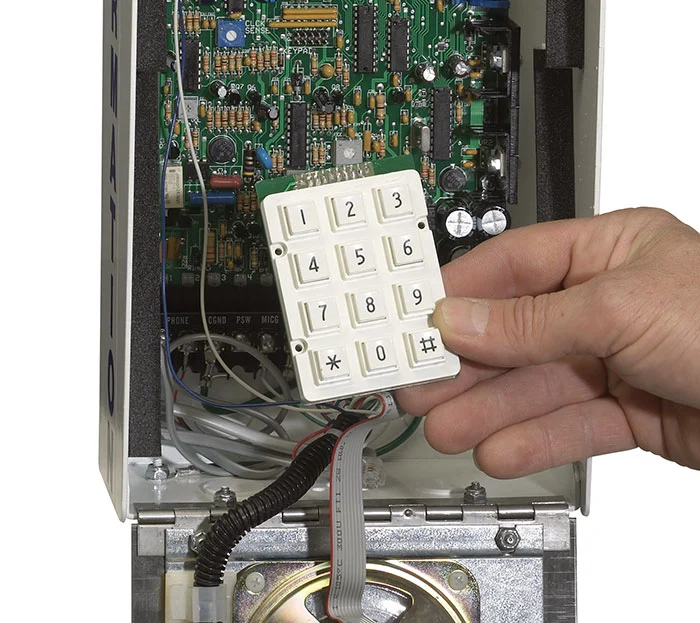

    Keypad Programming

    manual internal keypad for programming.

    Simple Communication

    Single CALL with the touch of a button.

    Technical Specifications

    Control up to 1 Access Point

    Store Up to 1 Phone Number

    Not Used with Entry Codes

    Not Used with Device Codes

    Relays Connected via Hardwire

    Specifications
    • Full duplex communication.
    • 16.5 VAC, 20 VA (250 ma) power transformer provided.
    • Ringer equivalence: 0.0 A.
    • Jack type: RJ11C or W.
    • FCC (US): DUF6VT-12874-OT-0
    • DOC (CAN): 1736 4507 A
    • Complies with UL 294.



    Mechanical
    • 10 and 11-digit dialing capability.
    • Full-duplex communication.
    • Single CALL push button for easy use.
    • Stainless steel faceplate
    • Galvanized steel sub-plate
    • Offset speaker holes for protection
    • Available in surface mount style only – indoor or outdoor applications
    • NEMA 4x rated enclosure





    Dimensions and Weight

    • Surface mount dimensions: 12″H x 6.5″W x 5″D.
    • Shipping weight approximately 15 Lbs (7 kg)
