1803 Entry System

The DKS 1803 is an ideal Telephone Entry System that is suited for applications that do not require a directory, or in applications where a separate directory exists. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.

Overview
Features
Tech Specs
Resources
Accessories
  • 1803 Telephone Entry System

1803 Entry System

Exceeding the Standards In Form, Fit, and Function

The model 1803 is an ideal telephone entry system that is loaded with features and is suited for applications that do not require a directory or in applications where a separate directory exists.   This unit is available in both surface and flush mount configurations.   Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.



Communicate with
Guests via Phone
Entry System
Programming via System
or Telephone Keypad
DTMF Tone Output
for PBX, KSU,
Auto-Attendants



Find A Dealer

Applications

Small Multi-Family Residential
Apartment Complexes & College Residence Halls
Gated Communities
Mixed Use Buildings
Commercial & Industrial
Self Storage
Parking Facilities
Maximum Security





Product Features



DKS Doorking 1803 Telephone Entry System Built-in LCD Display



Built-in LCD Display

Indicates door/gate has been opened.



DKS Doorking 1803 Telephone Entry System programmable



Grant or Deny Access

Visitors use the phone system to communicate with a resident who can grant or deny access via their own touchtone telephone

    Built to Last

    Allows for limitless design configurations.

    DTMF Tone Output

    Allows these Systems to be used with PBX, KSU and telephone systems with auto-attendants.

    Modular Design

    Telephone Access System uses a modular design concept that makes installation and service easy.

    Two Mount Styles

    Surface and Flush are available.

    Technical Specifications

    Control up to 2 Access Points

    Use Up to 1,000 Entry Codes

    Store Up to 600 Phone Numbers

    Not Used with Device Codes

    Relays Connected via Hardwire

    Specifications
    • Stores up to 600 telephone numbers.
    • EEPROM Memory Chip.
    • Full duplex communication.
    • 4-digit entry codes; 1000.
    • Six, 5-digit entry codes.
    • 16 VAC, 20 VA (250 ma) power transformer provided.
    • Ringer equivalence: 0.0 A.
    • Jack type: RJ11C or W.
    • FCC (US): DUF6VT-12874-OT-0
    • DOC (CAN): 1736 4507 A
    • Complies with UL 294; ETL Listed.
    Miscellaneous
    • Environmental: 10°F to 145°F (-12°C to 62°C)
    • ADA Compliant handset kit (P/N 1807-012) available on surface mount only
    • Camera Ready: Optional Color CCTV camera*
      *may require additional CCTV equipment
    • Surface or flush mount – specify which



    Mechanical
    • Programmable directory codes (1-4 digits).
    • 16-digit dialing.
    • Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
    • 5-digit entry codes for special needs.
    • Built-in time clock.
    • Hold open time zones.
    • Entry code time zones.
    • “Flash” entry codes.
    • Programming display.
    Options
    • Surface or flush mount – specify which.

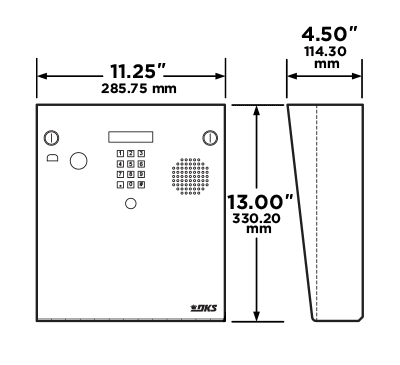

    Dimensions and Weight – Surface

    • Shipping weight approximately 15-20 Lbs (6.8-9 kg)
    • Surface mount dimensions: 13″H x 11.25″W x 4.5″D.





    Dimensions and Weight – Flush

    • Shipping weight approximately 15-20 Lbs (6.8-9 kg)
    • Flush mount dimensions: 13.25″H x 12″W x 3″D.
