SLIDE GATE WEIGHT BALANCED V-WHEELS

DKS provides a full line of V-Wheel Assemblies and replacement V-Wheels to meet any slide gate application and budgetary requirements.

Overview
Features
Tech Specs
Resources
  • DKS HeavyDuty VWheel 4wheels 6in Slide Gate

V-Wheels



DKS DoorKing offers a variety of V-Wheels and V-Wheel assemblies used in slide gate applications that utilize an inverted “V” type track. The weight and usage of the gate is critical in determining the size and type of V-Wheel that is right for your gate. UHMW wheels are generally used for lighter gates while steel wheels are used for heavy gates. For very heavy gates, the tandem wheel assemblies are ideal and provide a long service life by spreading the weight of the gate across a larger area than a standard single wheel – much like the tandem wheels on airliners spread their weight across many wheels. When in doubt, it is always best to use a heavier-duty wheel.



Find A Dealer

Features



Pivot Point

for uneven tracks



Sealed Bearings

maximum load bearing with excellent durability





UHMW V-Wheels

for smooth quiet operation



    6″ Heavy-Duty Quad V-Wheel Assembly

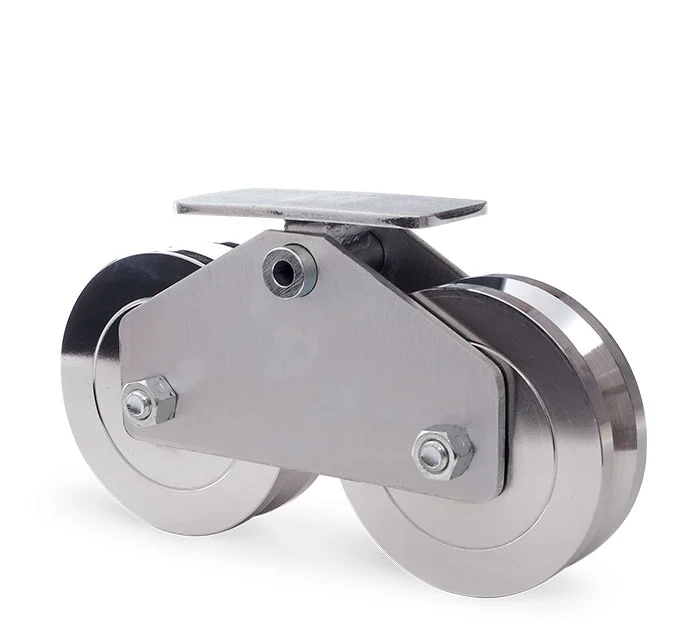

    6″ Heavy-Duty Tandem V-Wheel Assembly

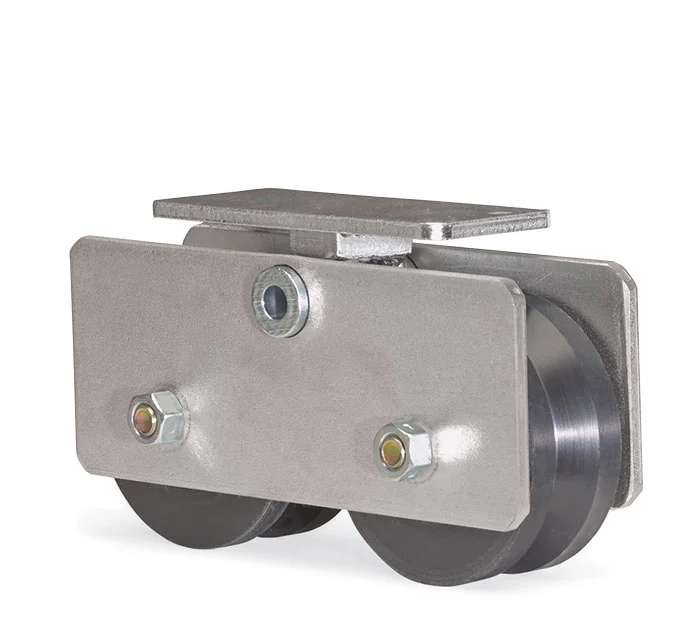

    4″ Tandem V-Wheel Assembly

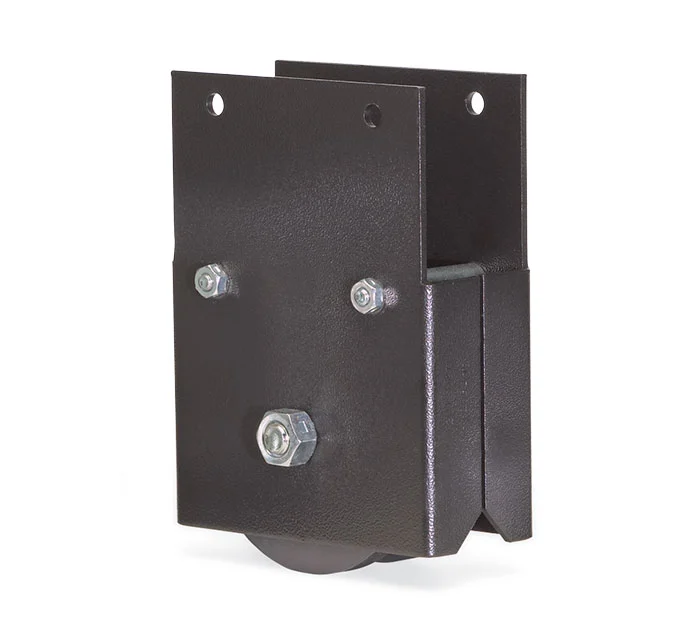

    V-Wheel Assembly

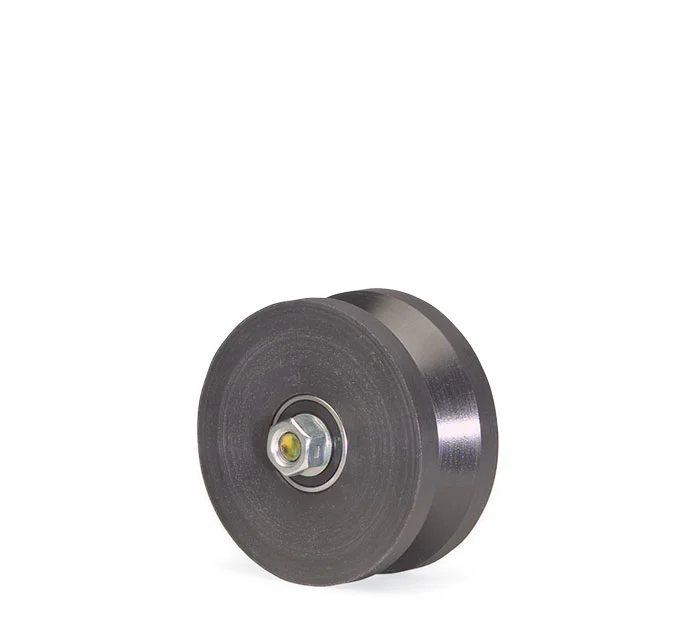

    V–Wheels

    Technical Specifications



    V-Wheel Assemblies
    • Guarding included.
    • Designed to fit onto 2 inch bottom gate rail.
    • Bolted or welded into place.
    • P/N 1201-102: 4″ UHMW Wheel, sleeve bearing. Max gate wt. 500 Lb.
    • P/N 1201-105: 4″ UHMW Wheel, roller bearing. Max gate wt. 750 Lb.
    • P/N 1201-117: 4″ Steel Wheel, roller bearing. Max gate wt. 1500 Lb.
    Tandem V-Wheel Assemblies
    • Ideal for use with very heavy gates.
    • Welded into place.
    • P/N 1201-012: 4″ UHMW Wheels, roller bearings. Max gate wt. 1500 Lb.
    • P/N 1201-010: 4″ Steel Wheels, roller bearings. Max gate wt. 3000 Lb.
    • P/N 1201-210: 6″ Steel Wheels, roller bearings. Max gate wt. 5000 Lb.



    Heavy-Duty 6 Inch Tandem / Quad V-Wheel Assembly
    • P/N 1201-215: 6″ Tandem Steel Sealed Bearing. Max gate wt.1 14,000 Lb.
    • P/N 1201-250: 6″ Steel Quad Sealed Bearing. Max gate wt.2  28,000 Lb.
    Replacement V-Wheels
    • P/N 1201-004: 4″ UHMW Wheel, sleeve bearing. Max gate wt. 500 Lb.
    • P/N 1201-006: 4″ UHMW Wheel, roller bearing. Max gate wt. 750 Lb.
    • P/N 1201-016: 4″ Steel Wheel, roller bearing. Max gate wt. 1500 Lb.
    • P/N 1201-000: 6″ Steel Wheel, roller bearing. Max gate wt. 2500 Lb.
    • P/N 1202-000: 6″ Steel Sealed Bearing Heavy-Duty. Max gate wt. 3500 lb
    1. Assembly is rated for 7,000 lb (3,175 Kg). The maximum gate weight is 14,000 lb (6,350 Kg) – two (2) assemblies are required per gate. With this configuration, each wheel (4 total) is supporting 3,500 lb (1,587 Kg). 2. Assembly is rated for 14,000 lb (6,350 Kg). The maximum gate weight is 28,000 lb (12,700 Kg) – two (2) assemblies are required per gate. With this configuration, each wheel (8 total) is supporting 3,500 lb (1,587 Kg).
