RF Accessories
MicroCLIK and MicroPLUS Accessories.
RF Accessories
Accessories for MicroCLIK and MicroPLUS receivers.
Enhance your Doorking MicroCLIK and MicroPLUS receivers with our accessories. The Coax Antenna Kit (Model 1514-073) includes everything you need for easy installation and reliable signal reception. Our Antenna Amplifier (Model 8052-080) boosts and filters 318 MHz RF signals, while the Metal Outdoor Enclosure (Model 8057-110) keeps your receivers safe outdoors. Note that the receiver isn’t included with the enclosure. Upgrade your receivers with these essential accessories for improved performance and security.
Features
Coax Antenna Kit
- Model 1514-073
- Includes mounting bracket, antenna & 15-feet coax cable.
Antenna Amplifier
- Model 8052-080
- Amplifies and filters 318 MHz RF signal.
- Includes 20‐feet coax cable.
Metal Outdoor Enclosure
- Model 8057-110
- Lockable, metal outdoor enclosure for RF receivers.
- Does not include receiver.

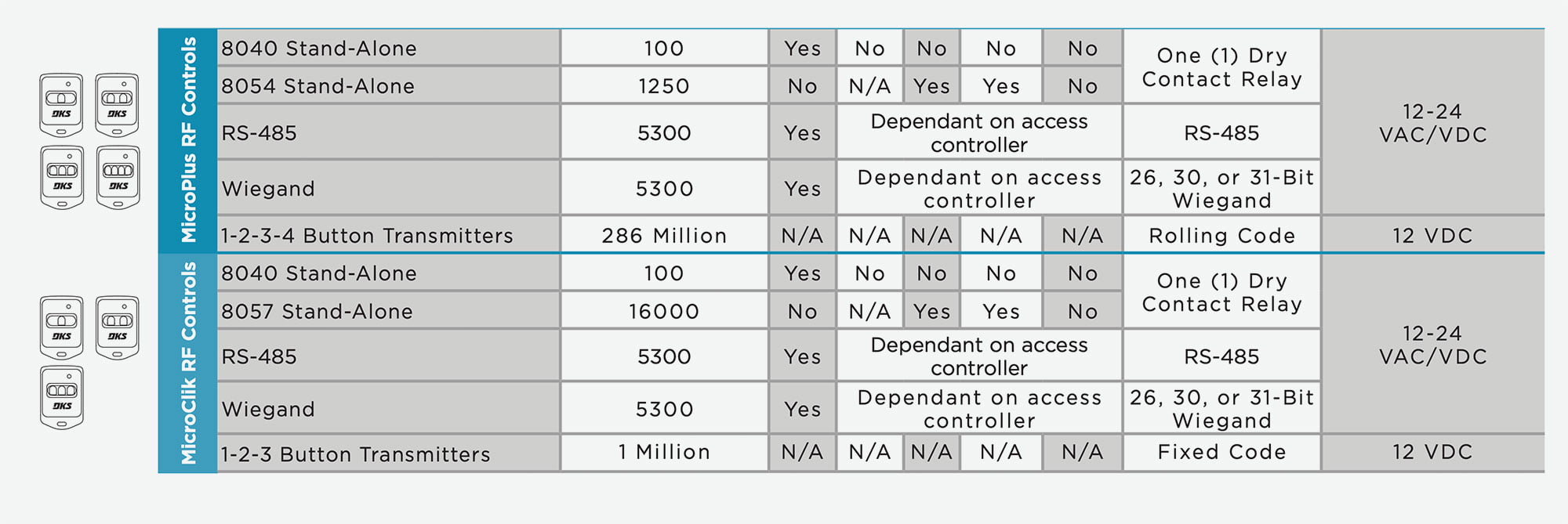

Technical Specifications
MicroCLIK®
TRANSMITTERS
- 1,000,000 codes available
- Available with 1, 2 or 3 buttons
- Powered with a 12-volt, type 23A battery (replaceable)
- Key ring included with transmitters
- PROXmitters combine the MicroCLIK transmitter with a built in proximity tag
- PROXmitters are available with DK Prox, AWID, IDTeck or HID tags
- Optional visor clips available
ELECTRICAL
- Transmitters – 12 Volt type 23A battery
MicroPLUS®
TRANSMITTERS
- 268,000,000 codes available
- Encrypted “sync” code changes each time the transmitter is used
- Available with 1, 2, 3 or 4 buttons
- Key ring included with transmitters
- PROXmitters combine the MicroPLUS transmitter with a built in proximity tag
- PROXmitters are available with DK Prox, AWID, IDTeck or HID tags
- Powered by a 12-volt type 23A battery
- Optional visor clips available
ELECTRICAL
- Transmitters – 12 Volt type 23A battery
