Mounting Posts & Kiosks
DKS offers a full range of mounting posts, whether it’s for vehicular traffic or pedestrian traffic requirements. Heavy-duty and designer style posts are typically used with the larger Telephone Entry Systems and are available in gooseneck/offset styles for vehicular traffic or straight styles for walk-up pedestrian use. The mounting Kiosks are ideal for walk-up pedestrian applications.
Mounting Posts & Kiosks
Vehicle or Pedestrian
Several styles of mounting posts are available from DKS. Heavy-duty and designer style posts are typically used with the larger telephone entry systems and are available in gooseneck styles for vehicular traffic or straight styles for walk-up pedestrian use. The mounting kiosks are ideal for walk-up pedestrian applications and are designed for DKS flush mount telephone entry systems (80 Series only). Both the designer style post and the walk-up kiosk include an accessory compartment that can house accessory transformers, surge supressers and a radio receiver. Additionally, the designer style post has an optional light tower that can be added to them. The standard posts are used with card readers, keypads and smaller access control devices. A dual-height style is also available for applications that have both vehicular and truck traffic.
|
Mounting Kiosks Designed for DKS Flush Mount Telephone Entry Systems 80 Series only |
Standard Posts |
|---|---|
|
Kiosk Designed for walk-up pedestrian applications, these Kiosks are designed with ultra-bright energysaving LEDs to illuminate the Entry Systems, for use with the following Systems: 1200-160 Use with DKS 1802 and 1802-EPD Flush Mount units only. 1200-170 Use with DKS 1803, 1810, 1833, 1834, 1835, 1837 Flush Mount 80 Series Models only. 1200-175 Use with DKS 1812 Classic, 1812 Plus and 1812 Access Plus Flush Mount units only. |
Standard Post The Standard Posts are used with Card Readers, Keypads, and smaller Access Control Devices; DKS 1808, 1812 Series Telephone Entry and 1504, 1506, 1520, 1524, 1515 Keypads, etc. (adapter plate available to mount DKS 1802, 1802EPD, and 1819 Telephone Entry Systems). A dual-height style is also available for applications that have both vehicular and truck traffic using the System. |
|
Architectural Mounting face for full size Telephone Entry Systems: 1830 Series, 1803, 1810. Small mounting face for Card Readers, Keypads and smaller Access Control Devices (adapter plate available to mount DKS 1802, 1802EPD, and 1819 Telephone Entry Systems) |
Designer The Designer Posts have a mounting face for full size Telephone Entry Systems: 1830 Series, 1803, 1810. There is also an optional light extension for exceptional illumination. Both Designer and Kiosk units have a lockable electrical panel on back which holds 4 Transformers, 2 Surge Suppressors, and an RF Receiver. |
Features
Built-in LED Lighting
Kiosks feature ultra-bright energy saving LEDs to provide illumination to the entry system
Electrical Compartment
for 4 Accessory Transformers, and Mounting Space for Surge Suppressors and an Access Control Radio Receiver
Lockable
electrical panel includes 4 convenience outlets for accessory transformers, and mounting space for surge suppressors and an access control radio receiver

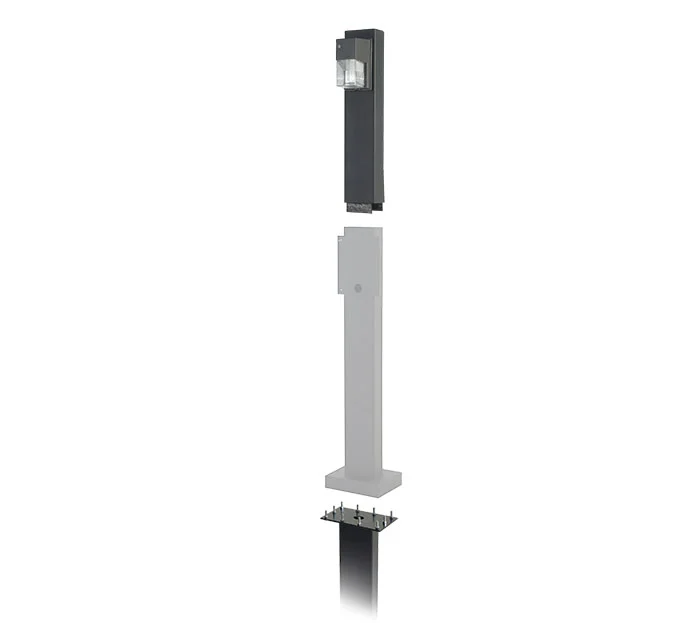

Designer Offset shown with optional 1200-087 Light Tower & Post Mount Adapter Plates

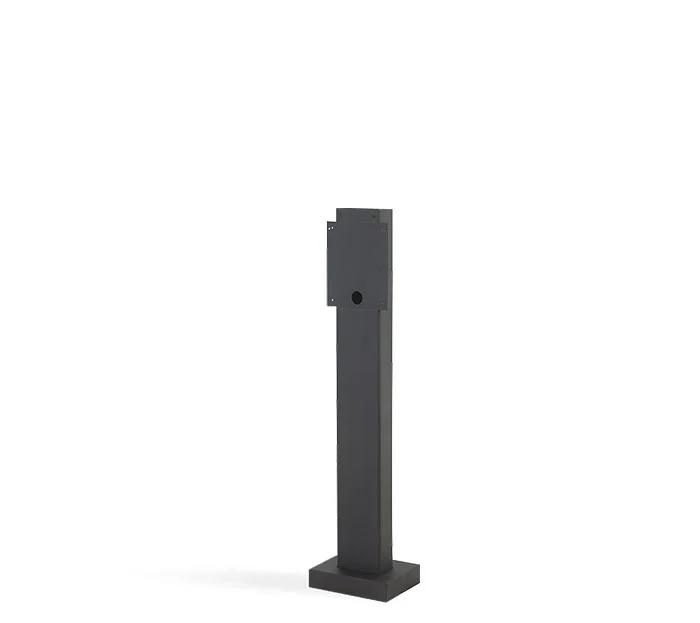

Designer Straight 1200-085

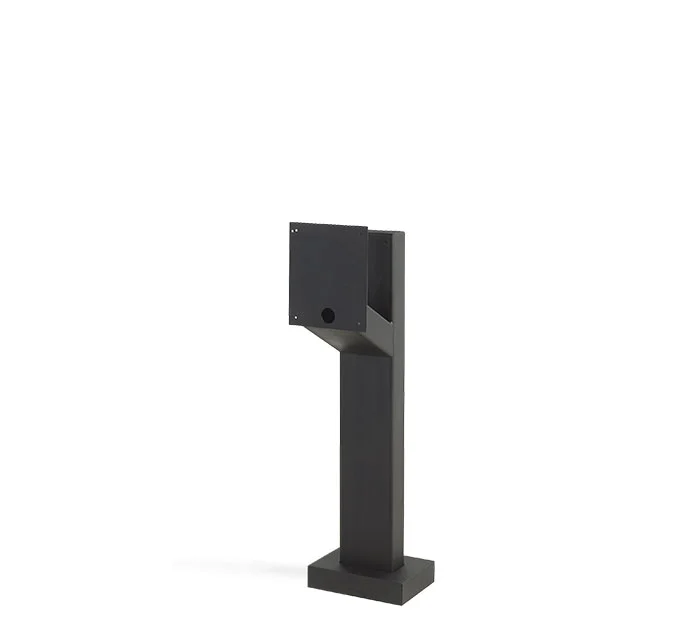

Designer Offset 1200-086

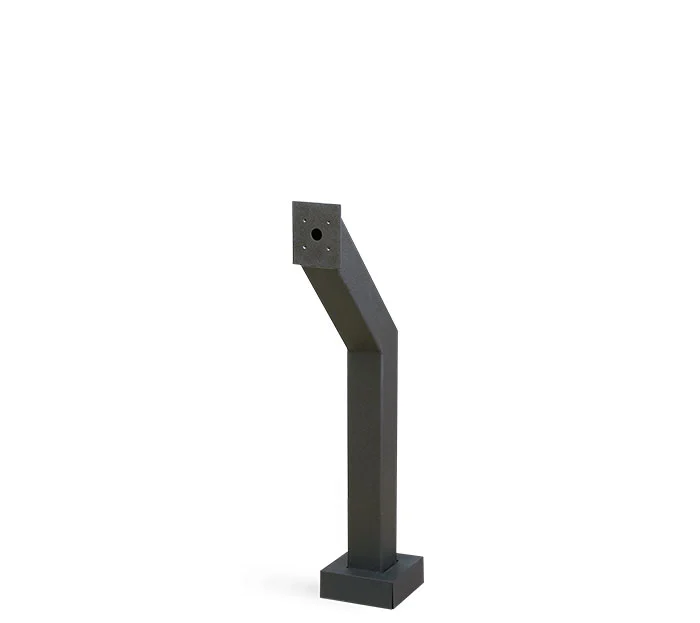

Heavy-duty Offset Small 1200-036

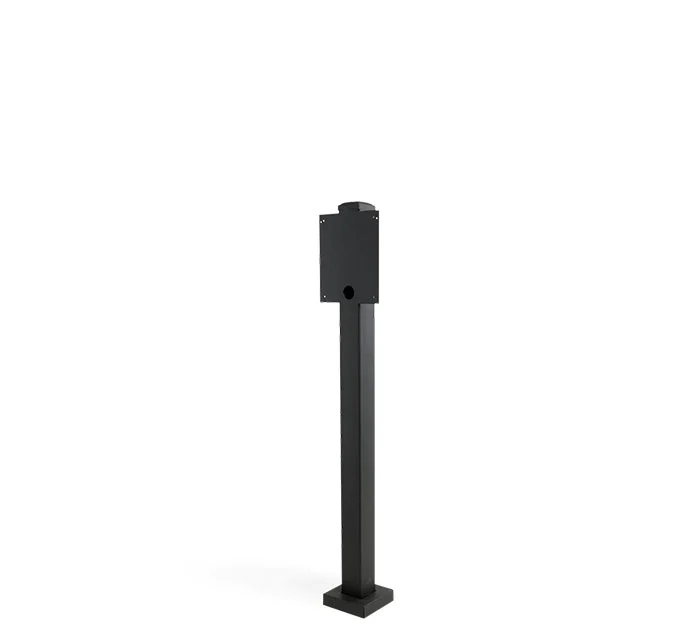

Heavy-duty Straight 1200-050

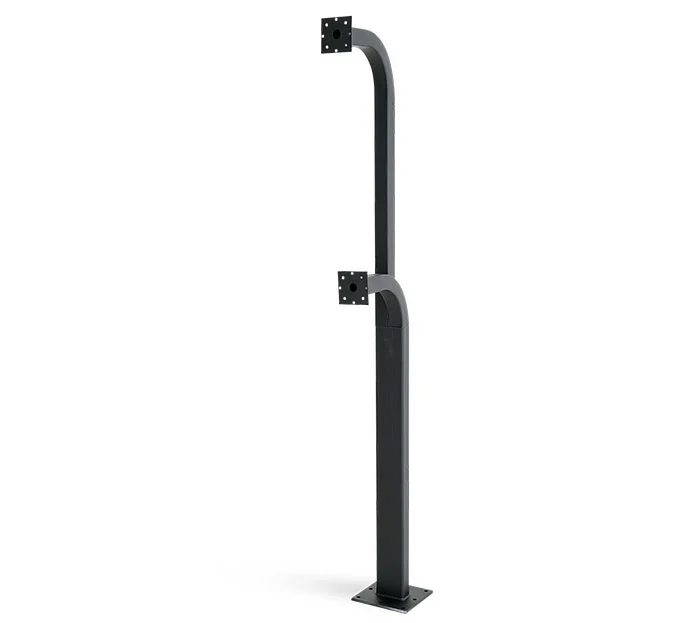

Standard Dual Height 1200-049

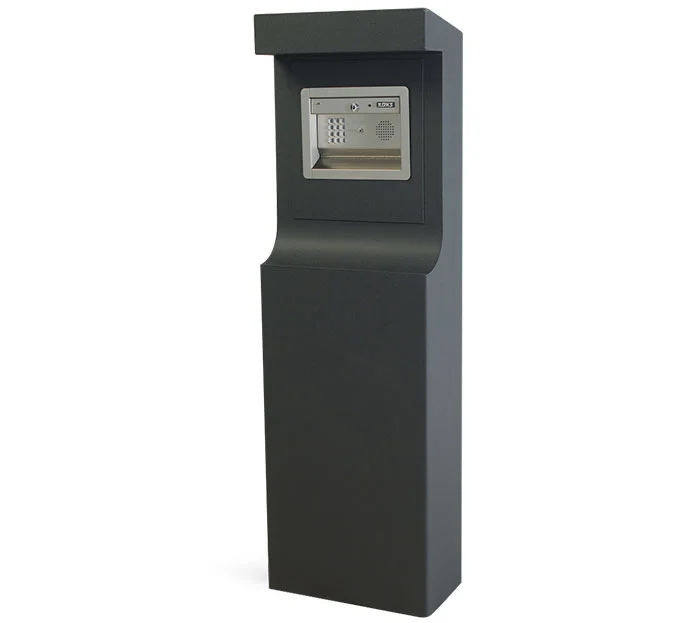

Kiosk 1200-175

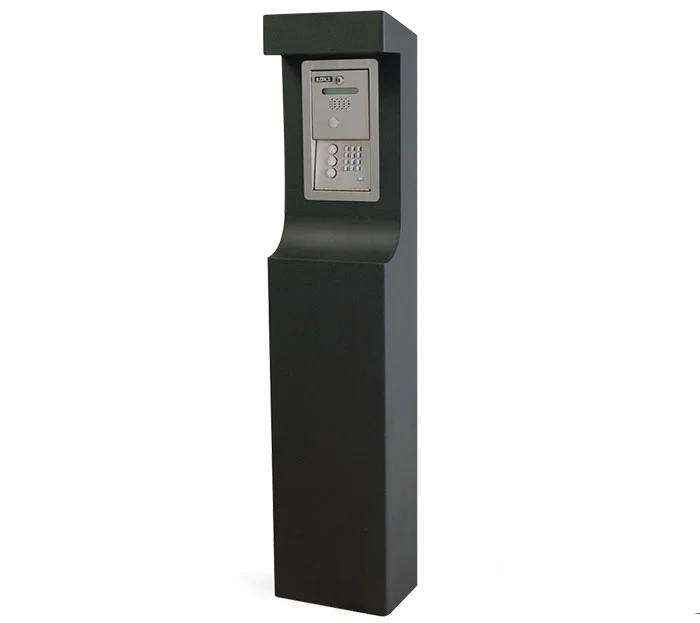

Kiosk 1200-160
Technical Specifications

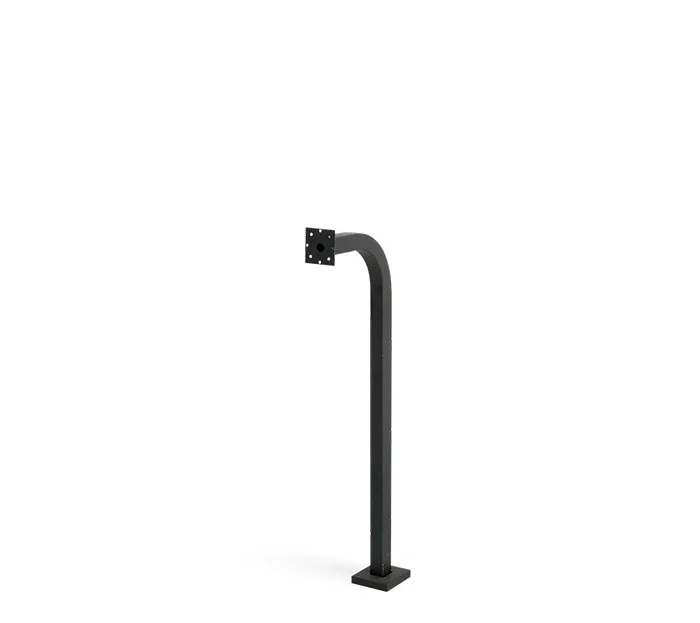

STANDARD POST
- Pad mount or in-ground mount styles available.
- Constructed from 2 x 2 steel.
- 43-inches tall to center of mounting plate (pad mount P/N 1200-045).
- Sweeps out approximately 13-inches.
- Pad mount style includes mounting plate and mounting plate cover.
- In ground mount unit (P/N 1200-046) is 65.5-inches overall length.
- Standard posts are not suitable for use with 1833, 1834, 1835 or 1837 systems.
HEAVY-DUTY STYLE POST
- Pad mount. In-ground adapters are available.
- Constructed from 4 x 4 steel.
- Gooseneck offset style (P/N 1200-037) is 49-inches to the top of the mounting plate and angles out approximately 14-inches.
- Straight style (P/N 1200-050) is 57-inches to the top of the mounting plate.
- Small offset gooseneck style (P/N 1200-036) is 41.75-inches to top of small mounting plate. Not for use with 1833, 1834, 1835 or 1837 systems.
DESIGNER STYLE POST
- Pad mount. In-ground adapters are available.
- Constructed from 4 x 8 steel.
- Offset style (P/N 1200-086) is 49.625 -inches to the top of the mounting plate and angles out approximately 14-inches.
- Straight style (P/N 1200-085) is 58.625-inches tall, 56.625-inches to the top of mounting plate.
- Accessory compartment includes four (4) 115 VAC convenience outlets and space for up to three (3) surge suppressers and an RF receiver.
DESIGNER POST LIGHT EXTENSION (P/N 1200-087)
- Order with light or add your own (DKS Light Assembly P/N 1200-150).
- Adds 48-inches to top of designer style posts.
- RF coax antenna mounting hole.
DUAL HEIGHT POST (P/N 1200-049)
- Pad mount. In-ground adapter available.
- Base post is constructed from 2 x 4 steel.
- Upper post is constructed from 2 x 2 steel.
- Two 12-inch sweeps.
- 42-inches tall to center of lower mounting plate.
- 72-inches tall to center of upper mounting plate.
- Pad mount style includes mounting plate and mounting plate cover.
MOUNTING KIOSKS
- Designed for use with Flush Mount Telephone Entry Systems (80 series systems only, cannot be used on 90 series systems).
- Kiosks are pad mounted.
- Locked accessory compartment holds four (4) transformers, three (3) surge suppressors, and a radio receiver.
- All models include ultra-bright LED lighting to illuminate entry system.
- P/N 1200-160 – 60” high x 13” wide x 9” deep. Use with DKS 1802 and 1802-EPD Flush Mount units only.

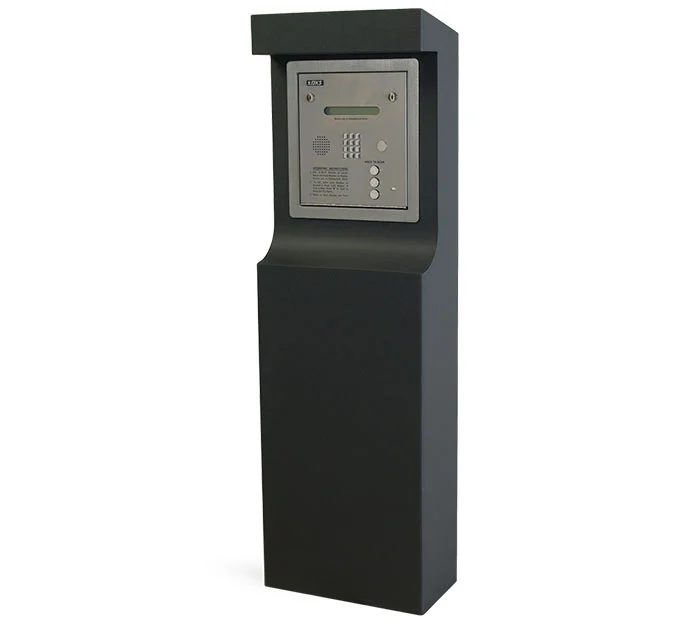

- P/N 1200-170 – 60” high x 18.5” wide x 10” deep. Use with DKS 1803, 1810, 1833, 1834, 1835, 1837, 80 Series Flush Mount units only.
- P/N 1200-175 – 60” high x 18.5” wide x 10” deep. Use with DKS 1812 Classic, 1812 Plus and 1812 Access Plus Flush Mount units only.
Compatibility
Several styles of mounting posts are available from DKS. Heavy-duty and designer style posts are typically used with the larger telephone entry systems and are available in gooseneck styles for vehicular traffic or straight styles for walk-up pedestrian use. The mounting kiosks are ideal for walkup pedestrian applications and are designed for DKS flush mount telephone entry systems (80 Series only). Both the designer style post and the walkup kiosk include an accessory compartment that can house accessory transformers, surge supressers and a radio receiver. Additionally, the designer style post has an optional light tower that can be added to them. The standard posts are used with card readers, keypads and smaller access control devices. A dual-height style is also available for applications that have both vehicular and truck traffic.
Full Case
|
Square Case
|
Horizontal Case
|
Vertical Case
|
Which Post for which Product?
|
wall or surface mounts only |
flush mounts only |
|||||||||
|
Standard Posts |
Architectural Posts |
Designer posts |
Kiosks |
|||||||
|
Pad Mount |
Dual Height |
Offset Small |
Offset |
Straight |
Offset |
Straight |
Small 1200-160 |
Large 1200-175 |
Large 1200-170 |
|
|
2112 eVolve |
✓ |
✓ |
✓ |
|
|
|
✓** |
|
||
|
1808AP |
✓ |
✓ |
✓ |
|||||||
|
1810AP |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1812AP |
✓ |
✓ |
✓ |
|
✓ |
|||||
|
1802-EDP |
✓ * |
✓ * |
✓ * |
✓ * |
||||||
|
1802 |
✓ * |
✓ * |
✓ * |
|
|
✓ * |
||||
|
1803 |
✓ |
✓ |
✓ |
✓ |
|
✓ |
||||
|
1808 |
✓ |
✓ |
✓ |
|||||||
|
1810 |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1812Plus |
✓ |
✓ |
✓ |
|
|
|
✓ |
|
||
|
1819 |
✓ * |
✓ * |
✓ * |
|
|
✓ * |
||||
|
1833 |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1834 |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1835 |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1837 |
✓ |
✓ |
✓ |
✓ |
✓ |
|||||
|
1520 Wiegand |
✓ |
✓ |
✓ |
|||||||
|
Keypad RF Prox |
✓ |
✓ |
✓ |
|||||||
|
1520 Stand Alone |
✓ |
✓ |
✓ |
|||||||
|
Keypads |
✓ |
✓ |
✓ |
|||||||
|
Key Switches |
✓ |
✓ |
✓ |
|||||||
* 1802, 1802-EPD, and 1819 require adapter plate 1802-111. ** 2112 eVolve flush only
Features
|
Architectural Posts |
Standard Posts |
Designer posts |
Kiosks |
|||||||
|
Offset Small |
Offset |
Straight |
Pad Mount |
Dual Height |
Offset |
Straight |
Small |
Large |
Large |
|
|
2×2 steel 5×5 base plate |
– |
– |
✓ |
✓ |
– |
– |
– |
– |
– |
|
|
4×4 steel 8×8 base plate |
✓ |
✓ |
✓ |
– |
– |
– |
– |
– |
– |
– |
|
✓x8 steel 10×14 base plate |
– |
– |
– |
– |
– |
✓ |
✓ |
– |
– |
– |
|
Keypads small controllers |
✓ * |
– |
– |
✓ * |
✓ * |
– |
– |
– |
– |
– |
|
Controllers full case |
– |
✓ |
✓ |
– |
– |
✓ |
✓ |
1802 and 1802-EPD flush mount only |
2112, 1803, 1810, 1833, 1834, 1835, and 1837 flush mount only |
1812 Classic, Plus, and Access Plus flush mount only |
|
Pad Mount |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
|
In-ground Mount post with no base plate |
– |
✓ |
✓ |
✓ |
✓ |
– |
– |
– |
– |
– |
|
In-ground Mount adapter for base plate |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
✓ |
– |
– |
– |
|
Compartment** |
– |
– |
– |
– |
– |
✓ |
✓ |
✓ |
✓ |
✓ |
|
Light Assembly |
– |
– |
– |
– |
– |
✓ |
✓ |
– |
– |
– |
Keypads and Small Controllers:
1520 and 1524 stand alone card reader and single door, card readers, 1504 keypad with intercom; and 1808, 1812 Classic, Plus, and Access Plus telephone entry systems. 1802, 1802-EPD, and 1819 require adapter plate 1802-111.
Controllers: 1803, 1810, 1833, 1834, 1835, and 1837
* Use Adapter Plate to mount 1802, 1802-EPD, and 1819 intercom systems. ** An electrical compartment can hold up to 4 accessory transformers, 3 surge suppressors, and an RF radio receiver.
