1610 Warning Signs & Traffic Signal


Warning Signs and/or Traffic Signals must always be used in any traffic control application utilizing Traffic Control Spikes.


1610 Warning Signs & Traffic Signal

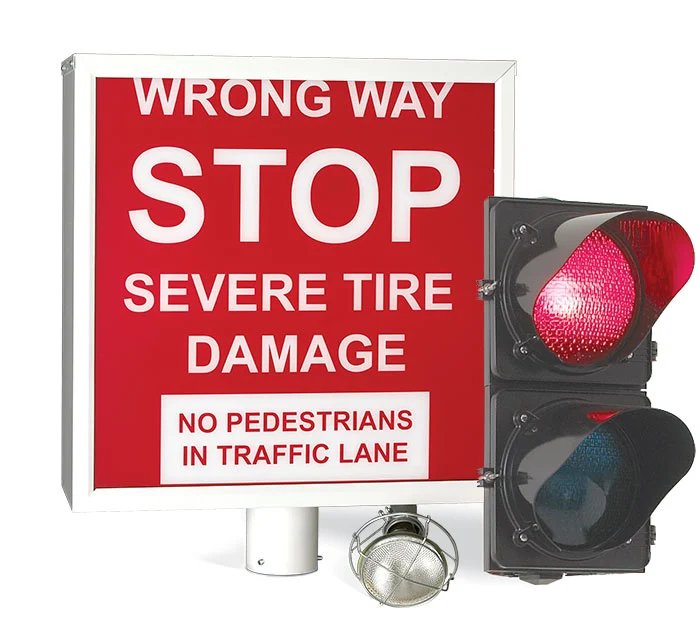

Warning signs and traffic signals are used with traffic control spikes and auto-spikes to inform drivers that a one way lane condition exist and that proceeding in the wrong direction, or before the spikes are fully retracted, will result in severe tire damage.   Warning signs and/or traffic signals should always be used in any traffic control application utilizing traffic control spikes.  The warning sign and traffic signals use LED lamps for energy efficient operation.




Features

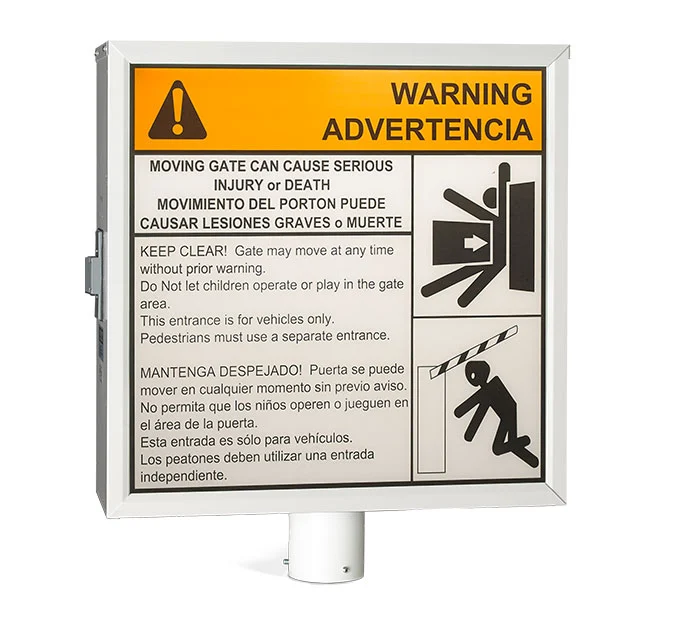

Warning Signs

  • Warning Sign includes light sensor for automatic operation.
  • Energy efficient LED bulbs (2 T8 LED bulbs, 20 watt, 700 lumens).
  • Built-in LED flood lamp for Spike illumination (9 watt, 655 lumens).
  • Mounts on 3” (76.2 mm) post.
  • Keyed on/off override switch.



Signal Light

  • Red/Green Traffic Signal can be synchronized with most Vehicular Gate and Barrier Gate Operators.
  • Large 8” (203.2 mm) red/green lenses.
  • Energy efficient LED bulbs (10 watt, 1300 lumens).







Synchronizes

With most vehicular gate and barrier operators.
Light Sensor

Automatically turns sign on at dusk, off at dawn.
Keyed On/Off Switch
Allows sign to be turned on or off manually.
Built-in LED Flood Lamp

For spike illumination.

Technical Specifications



Features
Warning Signs
  • Illuminated with two (2) LED 20 Watt, 700 lumen bulbs.
  • LED 9 Watt, 655 lumen flood lamp for spike illumination.
  • 115 VAC.
  • ETL Listed.
  • Dimensions: 24″H x 24″W x 8″D.
  • Designed to be mounted on 3″ mounting pipe (not included).
Traffic Signal
  • LED 10 Watt, 1300 lumen traffic lamps.
  • 12 VDC
  • UL Listed.
  • Dimensions: 20″H x 9.75″W x 14″D.
  • Designed to be mounted on mounting post (not included).



Specifications
Warning Signs
  • Light sensor for automatic operation.
  • Energy efficient LED bulbs.
  • Built-in LED flood lamp for spike illumination.
  • Keyed on/off override switch.
Traffic Signal
  • Red / green signal operates in sync with operator.
  • 8-inch lenses.
  • Energy efficient LED bulbs.
