9000 Commercial and Industrial


The DKS Model 9000 Slide Gate Operator offers powerful and safe access control in a small, compact design. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The 9000 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, these Operators will fit most slide gate operation requirements. These Operators are ideally used in residential, commercial or industrial high-use applications.


9000 Commercial and Industrial

Powerful & Quiet Operation

The DKS 9000 series of slide gate operators offer convenience, reliability and safe operation in a small, compact design. These operators are ideally used in residential, commercial or industrial high-use applications. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The 9000 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, these operators will fit most slide gate operation requirements.



Compatible with
Slide Gates
Versatile Mount on
Concrete Pad or Post
Full Size Heavy Duty
30:1 Ratio Gearbox



Applications

Commercial & Industrial
Small Multi-Family Residential

Product Features







High-use Applications

The powerful 9000 Slide Gate Operator is suitable for residential, commercial, and industrial high-use applications.









Adjustable Partial Open

Allows long gates to open 14 ft (4.2 m) for automobile traffic, or opens gate fully for large trucks or oversized vans.



%%tb-image-alt-text%%
Entrapment Prevention

Reverses gate when obstructed to prevent injury and damage.

%%tb-image-alt-text%%
Precise Limit Control

Simple setup to customize gate limits for any property.

%%tb-image-alt-text%%
Easy Access

Built-in power switch and alarm reset switch.

%%tb-image-alt-text%%
Belt Drive

Steel frame and belt drive / gear-box reduction system provide a powerful, yet extremely quiet gate operation.



Technical Specifications

Specifications
  • Maximum gate width 35-ft.
  • Maximum gate weight 1000 pounds* (1/2 HP) or 1500 pounds* (1 HP). (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
  • 1/2 or 1 HP continuous-duty motor
  • 115, 230*, 208*, 460* VAC.  (*230, 208, and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
  • Class I, II, III and IV applications
  • Direct driven limit nuts for precise gate control
  • Auto-close timer 1-30 seconds
  • Selectable loop / reverse input function; stop or reverse Anti-tailgating feature helps to control un-authorized traffic
  • Standard normally closed stop circuit
  • Ports for plug-in open and reverse loop detectors (DKS detectors only)
  • Two 115 VAC convenience outlets for accessory transformers
  • Compliant with UL 325 and 991, ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
Gate TrackerTM

Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control system (requires 2358 expansion board)



Mechanical
  • Steel frame provides strength and quiet operation
  • “T-Handle” release is easily accessible from front of operator
  • Operator re-connects automatically when handle is released
  • Direct driven limit nuts for precise gate control
  • Auto-close timer 1-30 seconds
  • Ports for plug-in open and reverse loop detectors – DKS detectors only
  • Selectable loop/reverse input function; stop or reverse
  • Anti-tailgating feature helps to control un-authorized traffic
  • Standard normally closed stop circuit
  • Gate Tracker reporting output provides operator data to DKS access control system
  • Convenience outlets for accessory transformers
  • Built-in power switch and alarm reset switch
  • Simple bi-parting gate interface
  • Frame: 3/16 (4.7 mm) steel, corrosion protected
  • Cover: 1/4 (6.3 mm) inch polypropylene
  • Reduction: belt driven 30:1 gear reduction running in a continuous oil bath
  • Speed: Approximately 1 ft (.3 m)/sec (30.5 cm/sec)
  • Chain: Unit is shipped with 20 ft (6 m) of #40 roller chain

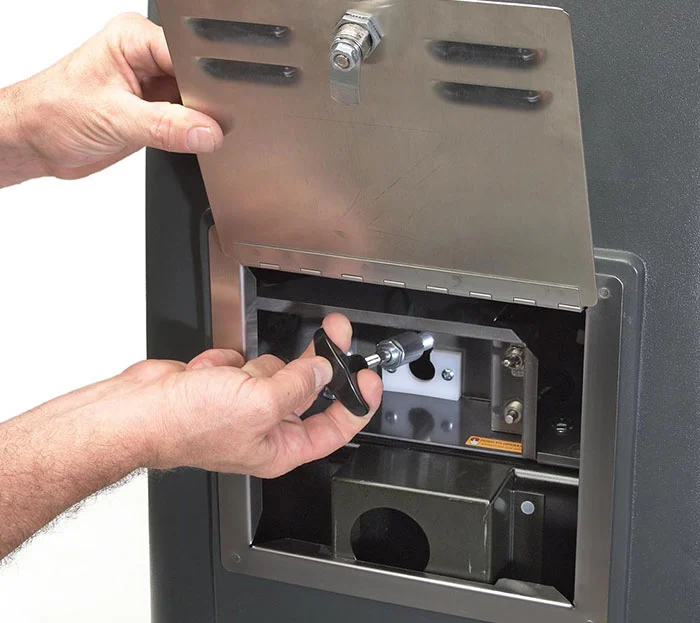

  • Manual Release: “T-Handle” release is easily accessible from front of operator. Operator re-connects automatically when handle is released
Miscellaneous
  • Environmental: 10°F to 140°F (-12°C to 62°C)
  • Thermostatically controlled heater kit recommended for colder environments
  • Operator requires monitored Type B1 and/or Type B2 entrapment protection devices
Options
  • Plug-in loop detectors.
  • Heater kit for cold environments.
  • Secondary entrapment prevention devices.
  • Bi‐parting gate connection cable.
  • Gate operator control stations
  • Postal and Fire Dept lock boxes
  • Surge suppressors, time clocks, traffic signal.





Dimensions and Weight





Dimensions:
18.375″W x 31.675″H x 23.25″D



Shipping weight approximately:
145-170 lb (64-77 kg) depending on model and options selected
